Electronic Symbols

You can use the China Machine Shop CAD software to create electronic schematics.

To create a schematic:

1. Download the CAD software.
2. Download and open the symbol library.
3. In Edit | Preferences | Grid set distance to .05".
4. On the left toolbar enable Snap to Grid.

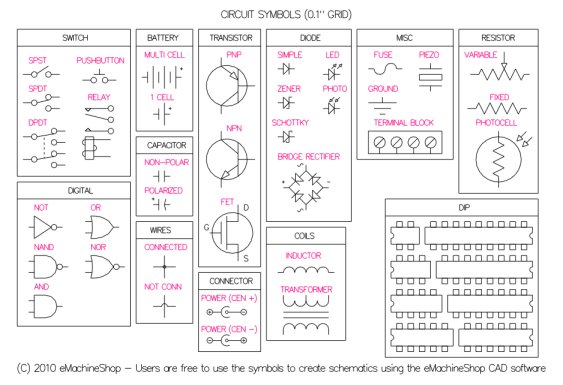

5. Cut & paste needed symbols into a new drawing. (You might find it convenient to copy the entire set of symbols to your drawing and remove upon completion.)

6. Add the appropriate connections.
