Straightness

When looking at 2D drawings of 3D objects, certain drawing views may show a part feature as a straight line. Straightness tolerance specifies a tolerance zone within which the line element of a feature must lie. Since straightness is applied to an individual feature, this tolerance does not need to be related to a datum. The straightness symbol is sometimes used to ensure mating features (e.g. a dowel orother press-fit assembly) will create a tight fit without the use of fasteners.

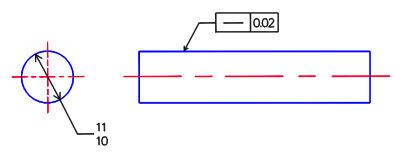

The figure below shows two views of a simple cylindrical pin. In the side view, the cylindrical surfacehas a straightness tolerance applied to it. Because the surface iscylindrical, this toleranceapplies toboth the top and bottom line elements. The boxed symbols can beread “the top and bottomof the cylindermust lie between two parallel planes 0.02 apart”.

Straightness_callout

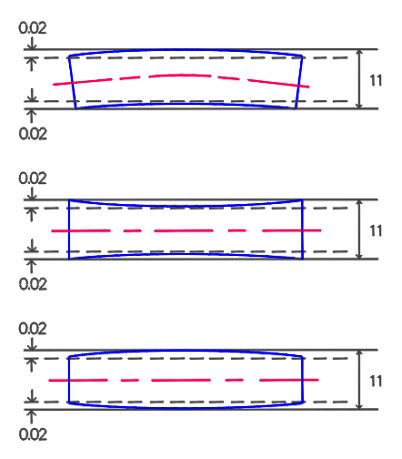

The additional figures below show three actual part conditions that would meet this tolerance.

Straightness_actuals
